Getting Started

2-18

MicroVAX 3100 Models 88/98 User Information

EIA-232 cables are available in the following lengths: 10 feet (BC22F-10), 25 feet

(BC22F-25), or 50 feet (BC22F-50). The peripheral you are using may require a null-

modem extension cable. See the peripheral documentation or contact your Digital sales

representative for information on the correct null-modem cable to use.

________________________ Caution___________________________

This modem control port has default support for non-standard 19.8 Kbaud. To

change to 19.2 Kbaud, user must remove Jumper on J26 on the CPU mother

board. Refer to Chapter 3, Figure 3-14.

___________________________________________________________

MLO-013618

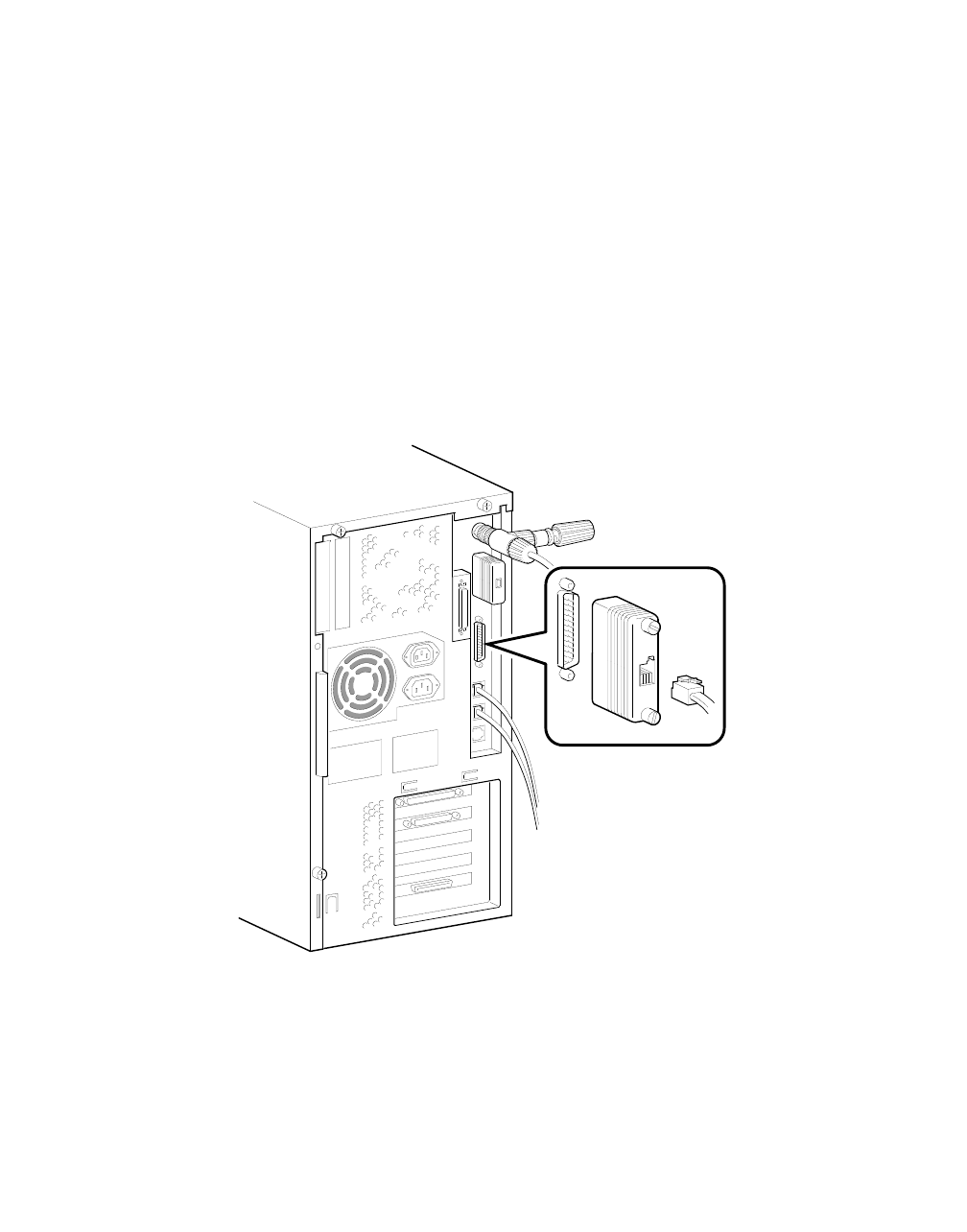

Figure 2-14 Connecting an EIA Connector to the Asynchronous Port
